KÄSSBOHRER K.SLS ECO Tieflader mit hydraulischen Rampen

K.SLS ECO Lowbed Semi-Trailer with Hydraulic Ramps, As New

Technical Specifications
Fifth Wheel Height: 1,250 mm
* Overall Length: 13,190 mm
* Gooseneck Length: 3,950 mm
* Platform Length: 9,240 mm
* Platform Height: 875 mm
* Wheelbase: 8,100 mm
* Total Width: 2,550 mm
* Unladen Weight: 10,130 kg
* Gross Vehicle Weight Rating (60 km/h): 52,800 kg
* Gross Vehicle Weight Rating (80 km/h): 48,000 kg

----Chassis BPW Axles with Air Suspension & Drum Brakes
Lrjdpfjw A D D Ssx Ab Rju
* 2x rigid axles at front, 1x self-steering trailing axle at rear
* WABCO braking system
* Tyres: 12 x 245/70 R17.5
* 1x spare wheel carrier on front bulkhead
* 1x load gauge
* NATO socket

----Frame High-strength S700 MC steel
* Gooseneck with 90° corners
* 45 mm hardwood floor
* Jost landing legs, foldable at the rear
* Tapered rear: 500 x 10°

----Ramps Loading ramp capacity: 40 tonnes
* 2x long hydraulic ramps, laterally adjustable
* 40 mm hardwood decking
* Dimensions: 3,800 mm long, 850 mm wide
* With ramp safety tension chain

----Load Securing & Equipment Lash rings and stake pockets with stakes
* 6x container locks (for one 20-foot container)
* Steel front wall (450 x 2,550 mm)
* 2x aluminium side walls (360 x 1,500 mm)
* 1x aluminium rear wall (360 x 2,550 mm)

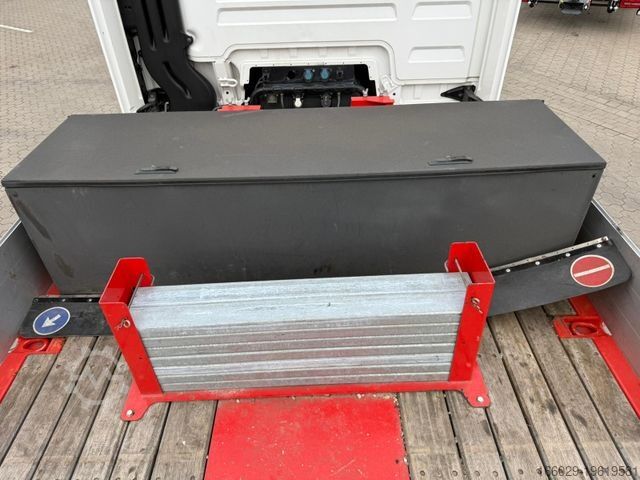

* Large internal toolbox in front of bulkhead
* Side-mounted toolbox

----Accessories Toolbox
* 1x revolving beacon
* 1x work light
* 2x2 oversize marker boards with LED
* Wide load package: extendable supports & wooden planks

----Colour Chassis: RAL 3020 Traffic Red

Please feel free to contact us for further information.
