工場でオーバーホールされたマグネットテーブル付き水平平面研削盤

GEIBEL & HOTZ FS 60 AC

Factory-refurbished

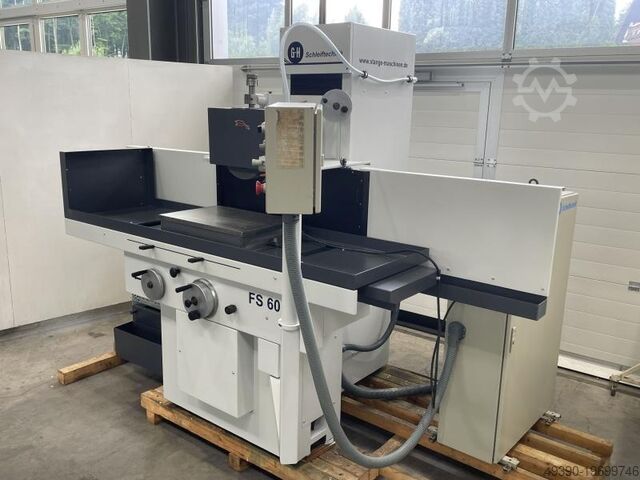

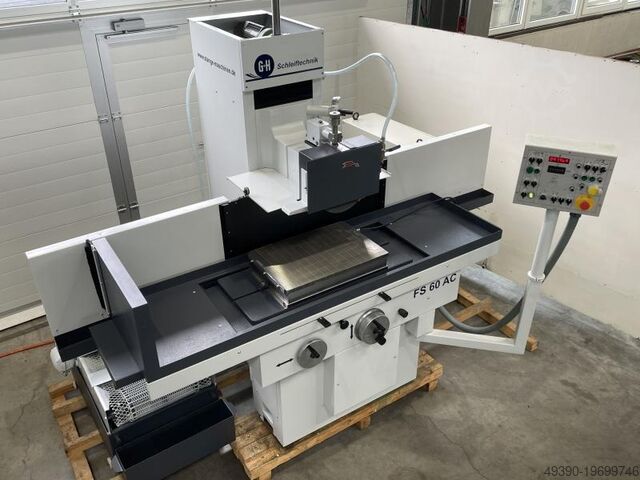

Surface Grinding Machine GEIBEL & HOTZ Type FS 60 AC
Machine No. 2012190398 Year of manufacture: 1998 - 2025
Completely overhauled by Stange Werkzeugmaschinen in 2025

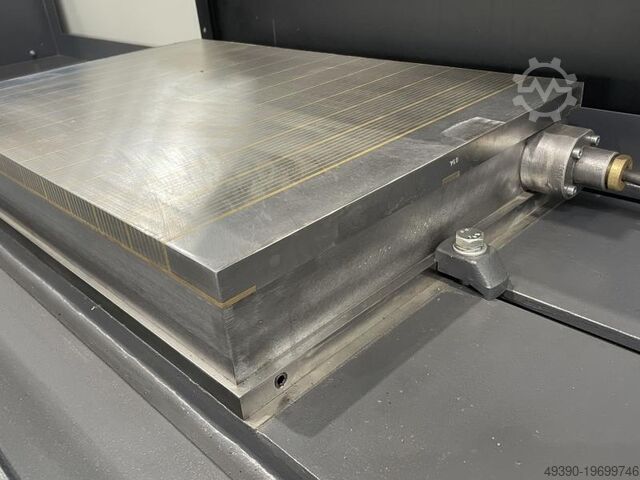

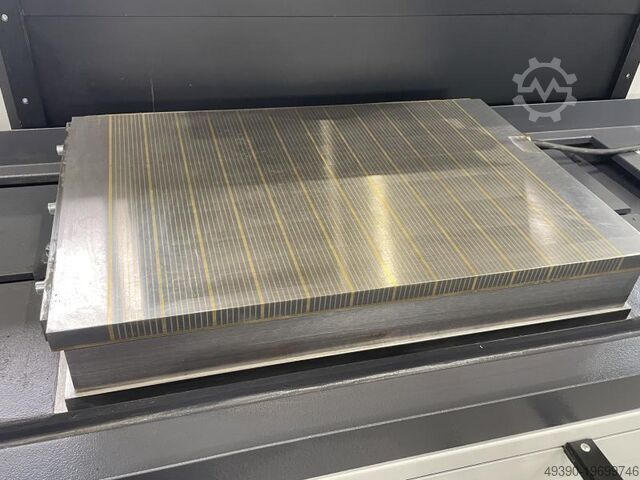

Electromagnetic clamping plate 600 x 400 mm
Table clamping surface 960/620 x 400 mm
Table longitudinal travel max. 660 mm
Grinding width 400 mm
Cross travel max. 430 mm
Distance spindle center to magnetic plate max. 425 mm
Table speed 2 - 28 m/min stepless
Grinding wheel dimensions Ø 300 x 50 x 76 mm
Manual vertical infeed 1 graduation = 0.002 mm
Manual cross feed 1 graduation = 0.01 mm
Power connection 400 Volt, 50 Hz
- Electromagnetic clamping plate GEIBEL & HOTZ, type HPM 600 x 400, overall height 99 mm

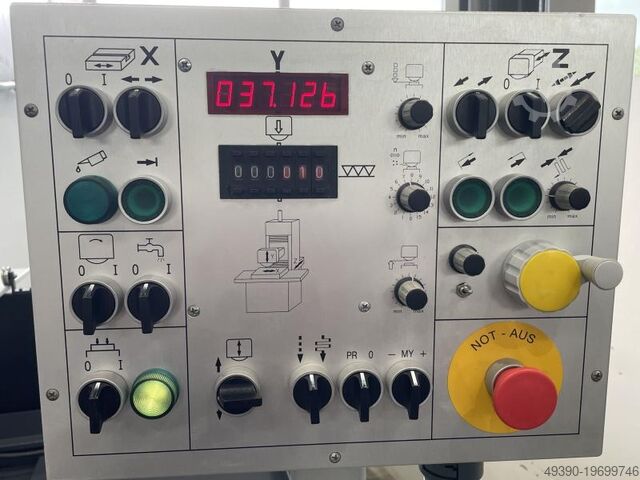

- Automatic depth infeed for planar and plunge grinding with actual value digital display
- Depth feed setting via decade switch
- Cross infeed for surface grinding, motorized or manual via handwheel
- Hydraulic longitudinal table movement
- Central lubrication for table longitudinal, Y+Z axis movements, and feed screws
- Mounted grinding wheel Ø 300 mm (actual Ø 290 mm)
- Separate electrical control cabinet
- Hydraulic unit integrated in machine base
Cjdpfx Asw Hhbcoa Rjhc
- Coolant system with paper band filter
- Machine mounted for transport on transport pallet
Required floor space (L x W x H) 2850 x 2250 x 2500 mm
Alternative floor space (L x W x H) 3000 x 2400 x 2500 mm
Weight approx. 2 tons (complete)
Very good condition – fully overhauled by Stange Werkzeugmaschinen
