KRONE SZ - Mega Koffer mit Rampenhalterung

KRONE Box Semi-Trailer SZK 18 eLB4-LI

Vehicle Data
- Vehicle Type: Box Semi-Trailer SZK 18 eLB4-LI
- Registration: Version for German registration (Germany)
- Permissible gross weight: 30,000 kg
- Permissible kingpin load: 12,000 kg
- Permissible axle load: 18,000 kg
- Fifth wheel height unladen: approx. 975 mm

Chassis and Running Gear
- Chassis: Welded steel chassis with double-T main and central beams, with outer frame, cross members and outriggers
- Front build height: approx. 100 mm incl. floor and fifth wheel plate
- Kingpin: 2” kingpin
- Rear underrun guard: In accordance with EU directive
- Side underrun protection: In accordance with EU directive
- Sliding step ladder: Rear sliding step ladder

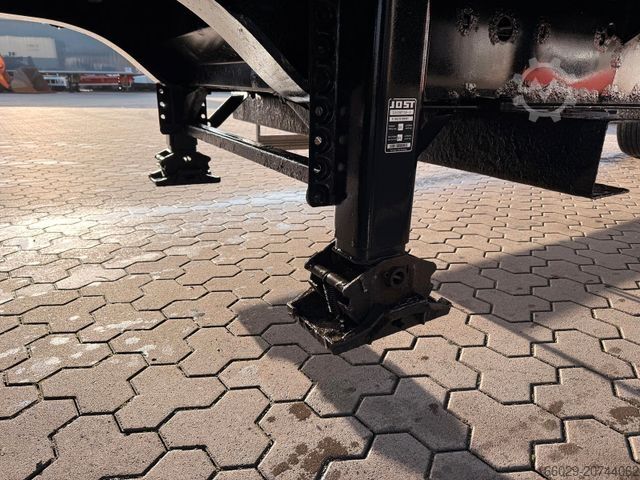

- Landing legs: Two mechanical landing legs, 2 x 12 t, semi-circular with base plate
- Landing leg operation: Single-side operation, right side

Axles, Brake System, and Tyres
- Axles: Two BPW axles 19.5", each with 9,000 kg load capacity
- Air suspension: Air suspension with a total stroke of 260 mm
- Brakes: Disc brakes with 370 mm diameter
- EBS: WABCO EBS system with RSS (Roll Stability Support), version 2S/2M
- Parking brake: Spring-loaded parking brake
- Wheel chocks: Two wheel chocks
- Tyres: 4 x 435/50 R 19.5 Goodyear
- Rims: Centrally mounted rims
- Spare wheel: Without spare wheel
- Spare wheel winch: Winch mounted centrally in front of aggregate
- Mudguards: Plastic wheel covers

Electrics and Lighting
- Electrical system: 24-volt system
- Tractor socket: 7-pin socket DIN ISO 1185 at front
- Additional socket: Additional 7-pin socket DIN ISO 3731 at front
- Lighting: Lighting in accordance with EU directives
- Marker lights: Two LED marker lamps with rubber arms
- Side marker lamps: LED side marker lamps
- Rear lights: Multi-function rear lights
- Rear fog lamp: One rear fog lamp
- Reversing lights: Two reversing lamps

Box Body
- Body type: Closed, insulated box body type AB 13620 STLI
- Internal length: approx. 13,620 mm
- Internal width: approx. 2,470 mm
- Internal height: approx. 2,915 mm
- Sidewalls: Sandwich construction, panel thickness 30 mm, painted exterior, PVC-coated interior
- Kick plate: Abrasion-resistant aluminium kick plate, height 300 mm
- Front wall: Steel front wall
- Front wall interior: Reinforced with phenolic plywood panel inside
- Roof: Insulated sandwich roof, panel thickness 30 mm with PU core and steel top layer
- Rear wall: Steel container door with replaceable seal
- Clear rear loading width: Internal width approx. 2,460 mm
- Door locking: Double bar lock on container door

Interior, Floor, and Load Securing
Hfodpfx Adjx Hb N Tjgsr
- Floor: 30 mm thick, waterproof bonded plywood floor as per DIN 283
- Floor edges: Cut surfaces sealed all round
- Forklift axle load: Suitable for up to 7,000 kg forklift axle load
- Lashing rails: Three rows of integrated slotted hole lashing rails per side
- Height of 1st rail: Centre approx. 700 mm above floor
- Height of 2nd rail: Centre approx. 1,400 mm above floor
- Height of 3rd rail: Centre approx. 2,100 mm above floor
- Load securing: Certificate as per EN 12642 Code XL
- Interior lighting: Four LED ceiling lights, surface-mounted and offset to the side

Paintwork
- Chassis colour: RAL 9005 Deep Black
- Body: RAL 9005 Deep Black
