19作業台付き魚包装ライン

NMTEH SIA NM-SPL202511

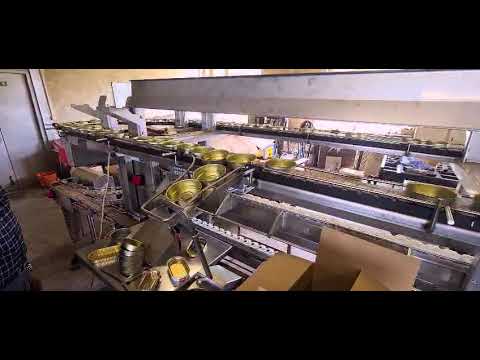

Can packaging conveyor with scales and 19 workstations

Equipment description:
Up to 250 empty cans can be stored on the line
workstations we can make how much you need.
Each workstation has a KERN EMB 2000-2 scale
Equipment width with workstations no larger than 1700mm
Equipment height no larger than 1700mm
Rodpfx Aow Afyhsl Docd
• Equipment frames made of stainless steel AISI 304
• Belt-chain type and butterfly type
• Conveyor for full boxes
• Conveyor for empty cans
• Two full can conveyors
• Empty can feed conveyor
• Adjustable speeds
• Option to record the work results of each person and a total can counter at the end
• At the workplace – Scales - Kerne
• Custom-made table production at the line
• Control box on one side
• Line max. power consumption 3.5Kw
• Control box to be agreed with the customer.

Easy clean
Easy to maintain

KERN EMB 2000-2 (2000g, d=0.01g) precision scales. Weighing surface 150mm.
Simple and convenient 2-button operation
Tare function facilitates formulation work
Extremely flat design
Ready to use: batteries included

2. Empty cans (aluminum and metal) (99mm) feed conveyor at 2.5m height
Equipment description:
Equipment frame made of stainless steel AISI 304
Belt type
Single line (for one type of cans, of course, you can also put long ones, but they have to be placed manually on the conveyor line, or you can order a separate conveyor as an option.)
Adjustable feed speeds
Can lifting speed 65 cans / 1min ( Option ) from washing machine (washing machine not included! Option)
- Manufacturing time form first payment: 5 months
- CE Certificate will be transferred with P/N act.
- Warranty - 12 months after the customer receives the equipment at their factory
