旋回式ベンディングマシン

FASTI 2095 - 20 / 3 / M200 CNC

sheet width 2040 mm
plate thickness 3 mm
Chsdsvgnm Hspfx Aa Rsc
daylight upper clamping 350 mm
bending angle max. 0-135 °
adjustment of lower and bend clamping 80 mm
control Fastimatic M200
power requirement 2,2/1,5 kW
weight of the machine ca. 2460 kg
dimensions of the machine ca. 3,2 x 2,8 x 2,1 m

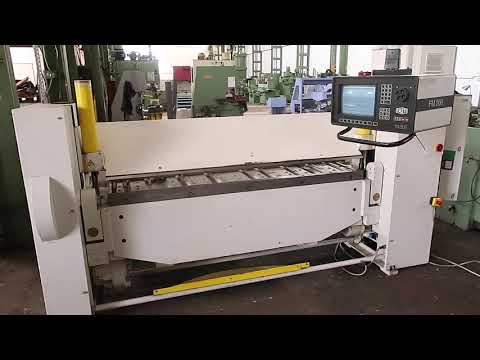

Motorized machine with motorized bending beam adjustment for setting the sheet
thickness, screen control Fastimatic M200 (DELEM FM 200 B) for controlling the
top cheek stroke, the bending angle and the back gauge with max. 30 working
steps, emergency stop switch with magnetic holder, back gauge with ball screw
spindles, CE mark. The bending performance refers to sheets of strength of 400
N / mm². Inox less due to its greater strength.
Little used machine, very good condition - original colour!
Please notice that the price of a new CNC-machine in this dimension with back
gauge is about 65000,--.
Machine dealer with own stock of 1600 m².
