スクリューコンベヤ付きブリケットプレス

WEIMA C 150

No. 04545

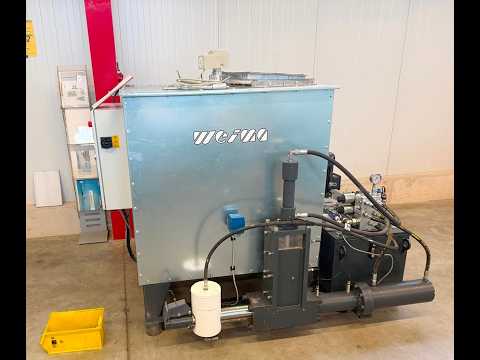

Briquetting press with screw conveyor WEIMA C 150

Used, year of construction 12/2015, 6123 operating hours, very good condition

Hydraulic briquetting press for compacting dry wood shavings, sawdust, paper, cardboard and comparable materials

Throughput capacity (depending on material) approx. 30 - 50 kg/h
Briquette diameter 50 mm
Motor power 5.5 kW
Hydraulic pressing mechanism
Max. clamping jaw stroke 10 mm
Storage hopper with discharge arm / agitator
Level sensor for automatic operation
Manual and automatic operation
Siemens SIMATIC PLC control
Briquette length monitoring for the production of uniform briquettes
Storage hopper approx. 1040 x 1040 mm LW
Separate hydraulic unit with oil tank
Psdpfezpxhisx Ah Esgu
CE-compliant

Incl. screw conveyor type RFS. NW 250 x 5200
Motor power 1.5 kW
Conveying capacity approx. 4.0 m3/h
Filling opening approx. 900 x 300 mm LW
Incl. geared motor, feeding section and protective covers

Incl. complete technical documentation

Transport dimensions briquetting press approx. 2000 x 1500 x 1700 mm LWH, weight approx. 1000 kg
Transport dimensions screw conveyor approx. 6500 x 500 x 500 mm LWH, weight approx. 800 kg

To avoid possible misunderstandings, an on-site inspection by appointment is possible and recommended

Sold as is

Technical specifications, condition description, year of construction and scope of delivery according to manufacturer’s brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “sold as seen”

Payment terms: Prices plus VAT, payment before collection or shipment

Delivery terms: ex warehouse
