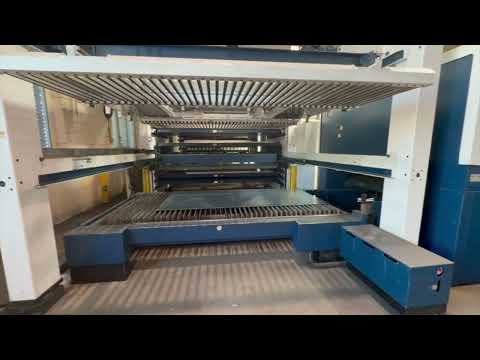

TRUMPF TruLaser 5030 Fiber mit Doppelturm-Lager

Trumpf TruLaser 5030 Fiber with Double Tower Storage System - Laser Cutting Machine

- Working area: 3000 x 1500 mm
- Laser power: 5000 W
- incl. LiftMaster Compact & TruStore 3030
- Year of manufacture: 2013

Equipment

- Working area: 3000 x 1500 mm
- Enclosed machine frame
- Integrated cabinet
- Automatic longitudinal pallet changer
- Torque drive combined with linear direct drive
- Enclosed beam guidance via fiber optic cable (LLK)
- Chiller unit (water/air)
- Integrated electrical cabinets with internal lighting
- TruDisk power supply via the machine
- Longitudinal conveyor belt
- Work area lighting
- Positioning laser diode
- Spraying device
- PierceLine
- FocusLine
- NitroLine
- PlasmaLine
- Automatic nozzle cleaning

Trumpf Laser

- LLK according to standard layout (laser directly next to the machine)
- Laser chiller unit (water/air)
- Excitation via pump diodes
- Laser power control
- Laser log function

Cutting Unit

- Universal cutting unit with fully adaptive lens system
- Cutting head strategy
- Protective glass against lens contamination
- State monitoring of the protective glass
- ControlLine: height control and sheet edge detection

Control

- Simple workshop programming
- Advanced workshop programming
- Fast reproduction
- Sinumerik 840D SL control
- 17" color touchscreen
- Integrated technology database
- Automatic shutdown
- Programmable selection of cutting gas/pressure
- FastLine
- FlyLine

Safety

- CE marking
- Light barriers
- Multi-chamber extraction system
- Integrated compact dust extractor
- Fire detection system in dust extractor
- Machine enclosure with certified viewing window / right-hand door
- Electric roll-top roof

Fpedpfx Ageym Umkj Rsd
LiftMaster Compact

- Basic unit with synchronous loader, peeling device and sheet thickness gauge, movable destacking rake, incl. loading/unpacking station
- Low-scratch, precise unloading (includes stainless steel rake with belt tines, tine spacing 67 mm; up to s= 15 mm)
- Cleaning brush for support bars
- Separation of thin sheet for synchronous loader (0.8 - 2.0 mm)

TruStore 3030 Double Tower Storage System

- Base module 3000 x 1500 mm
- Integration of LiftMaster Compact
- Storage compartment extension for LiftMaster Compact
- 2 × extension module 1.9 (for max. 9 storage compartments, loading height 90 mm, without pallets, module height 1980 mm)
- Storage and retrieval device
- Extension of storage and retrieval device for extension module
- 34 storage compartments 90 mm, incl. pallet
- 10 pallet bases
