縦型マシニングセンター

Spinner MVC 610

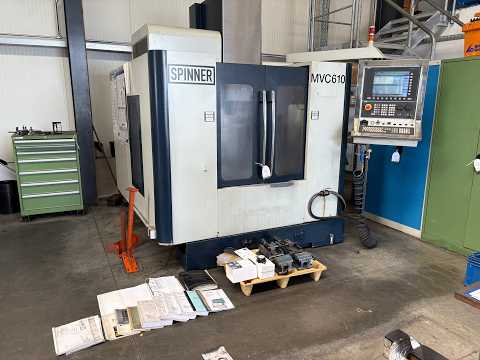

Vertical machining center Spinner MVC 610, year of manufacture: 2007

Delivery terms: Free on truck
Location: 74906 Bad Rappenau
Collection: The machine must be collected on October 7, 2026. The exact collection time will be arranged in advance.
Payment terms: Advance payment - by bank transfer

Technical data:

Travel in X-axis: 610 mm
Travel in Y-axis: 500 mm
Travel in Z-axis: 500 mm
Bdjdozx S Rpjpfx Algjg
Rapid traverse rate X / Y / Z: 24 m/min
Table size: 800 x 450 mm
Max. workpiece weight: 500 kg
T-slot size: 18 mm
Max. spindle speed: 10,000 rpm
Spindle taper: SK 40
Spindle drive power: 18.5 / 12.3 kW
Tool changer: 24-position
Max. tool diameter: 70 mm
Max. tool length: 250 mm
Max. tool weight: 8 kg
Tool change time: 2.5 sec
Control system: Siemens 810D / 840D
Feed motor X / Y / Z: 3.5 kW
Coolant pump standard: 0.53 kW
Coolant pump high pressure: 3 kW
Compressed air requirement: 6 bar

Scope of delivery:
Existing manuals as shown in the pictures
Existing accessories as shown in the pictures
Two vices as shown in the pictures
Measuring probe
Two cabinet units with contents as shown in the pictures

Dimensions & weights:
Installation dimensions L x W x H approx.: 3000 x 2500 x 2600 mm
Weight approx.: 4000 kg

If you have any questions or would like to arrange a viewing, please do not hesitate to contact us!

Additional notes:

►On request, we can offer transport to the destination.

►The quoted price is net plus VAT.

►The goods are sold without any warranty.

►Technical data is subject to change without notice.

►Subject to prior sale.

❗The sale of the goods is exclusively to business customers❗

この広告は自動翻訳されています。翻訳ミスがある可能性があります。
