パレット用グラビティラック

Jungheinrich

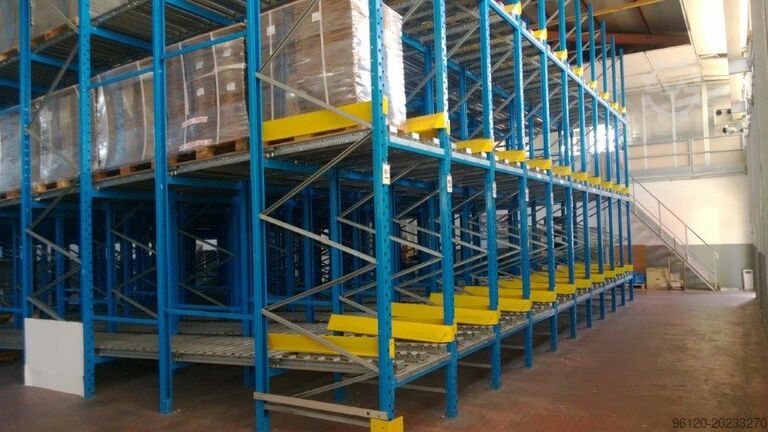

GRAVITY FLOW DYNAMIC RACKING SYSTEM

360 pallet positions – Gravity roller system, model STP – Capacity: 12 pallets per lane

System comprised of 30 dynamic roller lanes with S3 Fifa System technology, configured with 3-rail entry and 2-rail exit for deposit and retrieval of load units by forklift without the need for side shift. Each lane allows deep storage of 12 Euro pallets (dimensions 800 x 1200 x 1500 mm H), with forklift entry on the 800 mm side, suitable for pallet weights from 200 kg to 1,200 kg. The overall system length is 14,900 mm.

Technical specifications of rollers:

Galvanized steel rollers, 850 mm length, 60 mm diameter, 104 mm pitch

2 entry guides to facilitate loading
11 direct-action brake rollers for pallet speed control
1 pallet stop device
1 pallet separator group to assist with retrieval
Dodexltb Ajpfx Ah Aecn

Complete with fastening brackets and assorted hardware

この広告は自動翻訳されています。翻訳ミスがある可能性があります。
