CMM Hexagon Global S（三次元測定機）

Hexagon Global S

Hexagon Global S 07.10.07 – coordinate measuring machine (CMM)

The Hexagon Global S is a high-end coordinate measuring machine (CMM) designed for precise dimensional inspection of parts in the automotive, aerospace, medical, and precision manufacturing industries. Its portal-style construction, made of granite and aluminum, ensures high rigidity, thermal stability, and excellent measurement repeatability.

Measuring range:

* X-axis: 700 mm
* Y-axis: 1000 mm
* Z-axis: 700 mm

The machine enables geometric measurements according to GD&T standards, first article inspection (FAI), SPC analysis, and comparison of parts with a CAD model.

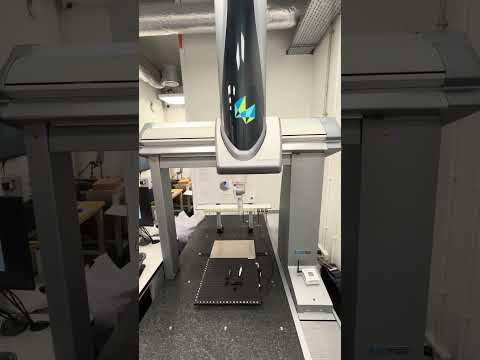

Equipment shown in the pictures:

Rcsdszkkihspfx Agyef
* Hexagon/Leitz measuring head with automatic stylus changing.
* Probe magazine with multiple stylus configurations.
* Joystick control for manual positioning.
* Computer with Hexagon measuring software.
* Granite measuring table.
* Set of professional part fixturing systems.
* Additional set of extensions, adapters, and components for probe configuration.
* Three-jaw chuck for mounting rotating parts.

Applications:

* Measurement of milled and turned parts,
* Inspection of molds and tools,
* Measurement of automotive and aerospace parts,
* Production inspection,
* Quality control for serial and single parts.
Year of manufacture: 2021
PC DIMIS software version 2024.2, offline and online version valid until August 2026

The machine is in excellent condition.

Optionally, a Hexagon service can be ordered to inspect, secure, prepare, and load the machine onto the customer's vehicle.
This service is subject to an additional fee.
