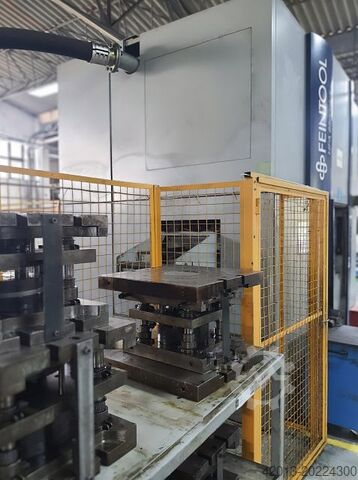

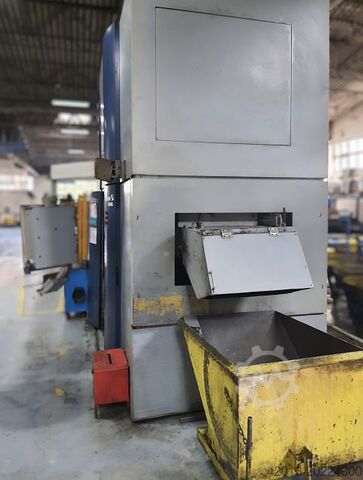

油圧式ファインブランキングプレス

FEINTOOL HFA 8800 PLUS

SLIDE
.. total force (nominal): 880 to
.. stroke: 305 mm
.. cutting velocity min.: 5 mm/s
.. cutting velocity max.: 70 mm/s
.. closing velocity: 200 mm/s
.. returning velocity: 200 mm/s

V-RING
.. nominal force: 400 to
.. stroke: 40 mm

Codjxlhlpepfx Aa Rohc
COUNTER RAM
.. nominal force: 200 to
.. stroke: 40 mm

TOOL DIMENSIONS
.. lower table (left-right): 1010 mm
.. lower table (front-back): 1600 mm
.. upper table (left-right): 1000 mm
.. upper table (front-back): 1000 mm
.. shut height max.: 460 mm

STRIP-FEEDER
.. feeder type: roll feeder
.. sheet width max.: 450 mm
.. sheet thickness max.: 16 mm
.. feeding step min.: 1 mm
.. feeding step max.: 999.9 mm
.. sheet length min: 3950 mm
.. speed max.: 48 m/min
.. Vertical adjustment: 140 mm
.. nominal force: 60 kN

ELECTRICAL SPECIFICATIONS
.. total power consumption: 188 kW
.. main drive power: 160 kW

ATTACHMENTS -FINEBLANKING PRESS-
.. autom. tool clamping device: yes
.. closed cabin: yes
.. decoiler: no
.. leveller unit: no
.. waste cutter: yes
