HZM 810 Profi

The HZM 810 Profi is a powerful compact loader designed for professional use in the construction industry, agriculture, and landscaping. Powered by a proven Kubota V1505 4-cylinder diesel engine with 25 hp / 18.2 kW, it offers powerful and fuel-efficient performance for continuous operation.

As standard, the machine features a fully equipped cab with a suspended comfort seat, heating, ventilation, windshield wipers with a washer system, lockable doors, and a rear-view camera, all without any additional cost. The hand throttle maintains a constant engine speed regardless of the travel lever position, making it ideal for hydraulically powered attachments such as sweepers or mulchers. The Auto-drive function (cruise control) automatically regulates the driving speed, reducing driver fatigue on longer transport routes. The differential lock can be engaged by pressing a button on the joystick, providing maximum traction even on slippery surfaces.

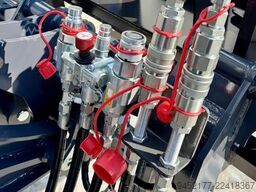

The hydraulic Euro quick coupler allows for tool-free attachment changes in seconds. The 3rd and 4th hydraulic circuits with continuous pressure function and pressure-free return allow for continuous operation of hydraulically powered attachments without any loss of performance.

The machine is CE-certified in accordance with the EU Machinery Directive 2006/42/EC and is supplied with a COC document for straightforward road approval. To operate on public roads, a Class L driver's license (up to 25 km/h) is sufficient; no driver's license is required on private property. 2-year manufacturer's warranty with no restrictions.

Technical data:

Hydraulic pump: Bondioli & Pavesi (Italy)
Hydrostat: PWG (Italy)

Feature Value
Engine Kubota V1505, 4-cylinder diesel
Engine power 18.2 kW / 25 hp at 2,300 rpm
Max. torque 92.6 Nm
Drive type Hydrostat with driveshaft, 2 travel ranges
Maximum speed 20 km/h
Fuel tank 40 l
Hydraulic tank 50 l
Max. hydraulic oil pressure 180 bar
Max. hydraulic oil flow 42 l/min
Operating weight 2,300 – 2,500 kg
Nledpezpf S Ujfx Anqod
Tipping load at the attachment (machine level) up to 2,170 kg
Standard bucket 0.4 m³
Dumping height 2,448 mm
Turning radius inside / outside 1,588 mm / 3,067 mm
Overall length / width / height 1,190 mm / 1,446 mm / 2,279 mm
Wheelbase / track width 1,595 mm / 4,091 mm*

*Manufacturer's specification – please check against the data sheet if required.

Highlights:
Full cab with heating, ventilation, rear-view camera; suspended comfort seat; adjustable steering wheel; LED main and cab lighting; rotating beacon; windshield wiper/washer system; radio; professional joystick with hydraulic pilot control; hand throttle; Auto-drive cruise control; brake-inch pedal; Euro quick coupler with pressure relief; 3rd/4th hydraulic circuit with continuous pressure function; electronically controlled drive (PWG); hydraulic auxiliary oil cooler; differential lock (joystick-activated).

Scope of delivery:
HZM 810 Profi incl. Euro attachment & 0.4 m³ standard bucket, German operating manual, COC documentation, 2-year mobile warranty with free choice of workshop, invoice with VAT stated.

Options: Individual configuration (tires, rain protection roof instead of cab, rear weight 200 kg) available upon request.
