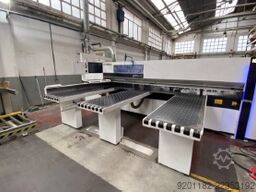

HOMAG SAWTEQ B-300 profiLine Panel Saw

The HOMAG SAWTEQ B-300 profiLine is a high-performance industrial beam saw designed for the precision cutting of coated and uncoated wood-based panels. Engineered for continuous production environments, it combines robust mechanical construction, high cutting performance, automated material handling, and intelligent digital control to maximize productivity while maintaining exceptional cut quality.

Key performance features include a 3,800 mm cutting length, ±0.1 mm/m positioning accuracy, and a powerful 24 kW main saw motor with a 2.2 kW scoring saw, ensuring clean, chip-free cuts even on laminated materials. The saw carriage reaches feed speeds of up to 130 m/min, enabling short cycle times and high daily output.
Iedpfx Aozmglkepnoih

Material handling is highly automated through a 4-ton hydraulic lifting table, dual micro-feeders, automatic loading for thin panels, alignment units, and an optimized pusher system equipped with 11 lifting clamps. Air cushion tables with integrated air nozzles facilitate effortless panel movement while protecting sensitive surfaces from scratches.

The machine is built around a heavy-duty steel frame with precision rack-and-pinion drives, maintenance-free measuring systems, and a patented central squaring system that reduces cycle times by up to 25% compared with conventional designs. The robust construction ensures long-term dimensional accuracy, minimal vibration, and excellent repeatability.

Operation is managed through the PowerControl V2.1 system with a 24-inch Full HD multi-touch display, HOMAG powerTouch interface, CADmatic 5 software, integrated diagnostics, tool management, and network connectivity. The machine is also tapio Ready, enabling future integration with HOMAG's digital production ecosystem and Industry 4.0 services.

Additional features such as ecoPlus energy-saving technology, automatic cutting height adjustment, optimized dust extraction, pneumatic saw movements, electric scoring saw adjustment, and remote diagnostics via TeleServiceNet further enhance machine efficiency, reduce operating costs, and simplify maintenance.

Overall, the SAWTEQ B-300 profiLine provides an ideal solution for manufacturers seeking high productivity, precision, automation, and digital connectivity in industrial panel processing.
