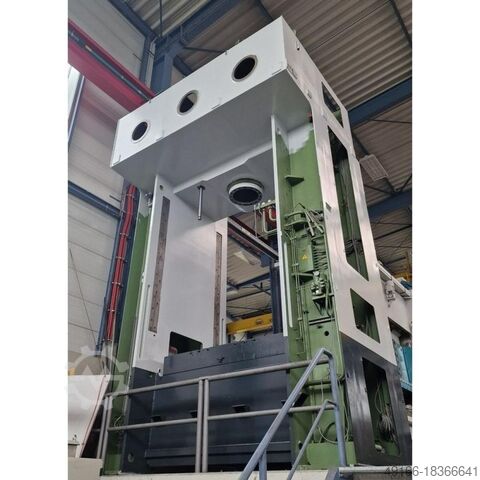

ダブルコラム絞りプレス - 油圧

DUNKES HDZ 315 / 100 / 63 (CE)

pressure 315 t
distance between columns 2350 mm
distance table/ram, max. stroke up, adjustment up 1200 mm
distance between cutting impact cushioning 1600 mm
Distance table/ram, stroke up 1200 mm
stroke 800 mm
table surface area 2060 x 1260 mm
table height over floor 750 mm
Die cushion pressure in table 100 t
Die cushion stroke in table 400 mm
die cushion area 1250 x 1000 mm
side window 780 mm
ram surface 2200 x 1500 mm
Capacity of ejector in ram 63 t
speed down 500 mm/s
speed up 310 / 410 mm/s
working speed 20 - 73 mm/s
quantity of oil 3900 l
power requirement 80,0 + 45,0 kW
weight 55,0 t
Dimensions (WxDxH) 4,6 x 2,7 x 7,2 m
Height above floor 6,0 m
Height below floor 1,2 m
permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, hydraulic drawing cushion in table, hydraulic ejector in ram, hydraulic cutting impact cushioning, hydraulic ram interlocking
can be offered without putting into operation (partly dismantled, in need of overhaul) or alternatively with overhaul and new control Siemens S 7-1500 F
