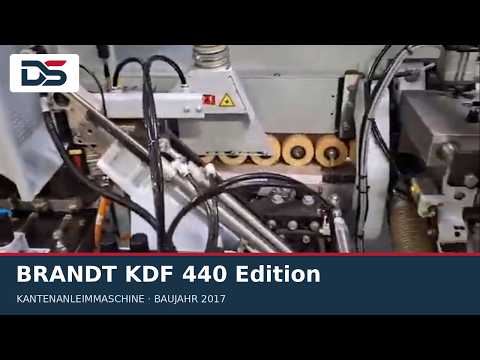

Brandt KDF 440 Edition

Brandt KDF 1440 Edition

Only 1700 operating hours – in very good condition – can also be supplied with a preheating station.
XES 200 autonomous unit (+ €4500) available.

SUMMARY OF MACHINE EQUIPMENT:
JOINTER HEAD 2 X 2.2 KW 200 HZ
GLUING UNIT QA 65 N
SAWING UNIT BEVEL/STRAIGHT 2 X 0.18 KW
PNEUMATIC ADJUSTMENT FOR SAWING BEVEL/STRAIGHT
MULTI-STAGE MILLING HEAD MS 40 COUNTER-ROTATING
PNEUMATIC 2-POINT ADJUSTMENT
SHAPED MILLING HEAD 1 X 0.35 KW WD 60; also for structural flooring
PNEUMATIC 2-POINT ADJUSTMENT RADIUS/BEVEL
MULTI-STAGE SCRAPER HEAD MZ 40
GLUE JOINT SCRAPER
EDGE TRIMMING UNIT
Overpressure: PU rollers instead of standard rollers
Additional application unit QA 65 N (interchangeable)
Release agent spray unit for workpiece
Automatic edge infeed
Multi-roller scanning for multi-stage milling head MS 40 + multi-stage scraper MZ 40
Cleaning agent spray unit

WORKPIECE AND EDGE PARAMETERS:
– Workpiece width min:
– For workpiece thickness 8-22 mm ¦ 70 mm*
– For workpiece thickness 23-40 mm ¦ 120 mm*
– For workpiece thickness 41-60 mm ¦ 150 mm*
Lhjdpfx Aezb Iggekaon
*Depending on workpiece length
– Workpiece overhang ¦ 38 mm
– Workpiece thickness ¦ 8 – 60 mm
– Edge height max. = workpiece height ¦ + 6 mm
– Edge material, roll ¦ 0.4 – 3 mm
– Edge cross-section max.
– For PVC ¦ 135 mm²
– For veneer ¦ 100 mm²
– Roller diameter max. ¦ 830 mm
– Edge material, strip ¦ 0.4 – 8 mm
– Edge cross-section max.
– For strips ¦ 360 mm²

– Feed rate ¦ 8 – 14 m/min
– Max. feed rate with shaped milling head ¦ 11 m/min
– Working height ¦ 950 mm
– Pneumatic connection ¦ min. 6 bar
– Overall length ¦ 5,573 mm

Complete description: see PDF
