Horizon VAC-100m | 2003

Horizon VAC-100

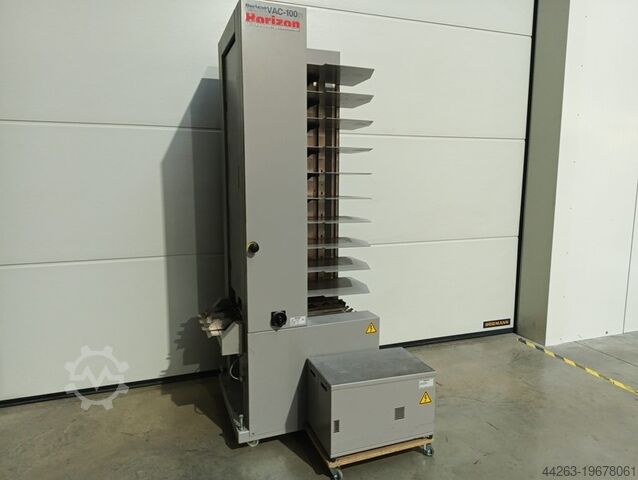

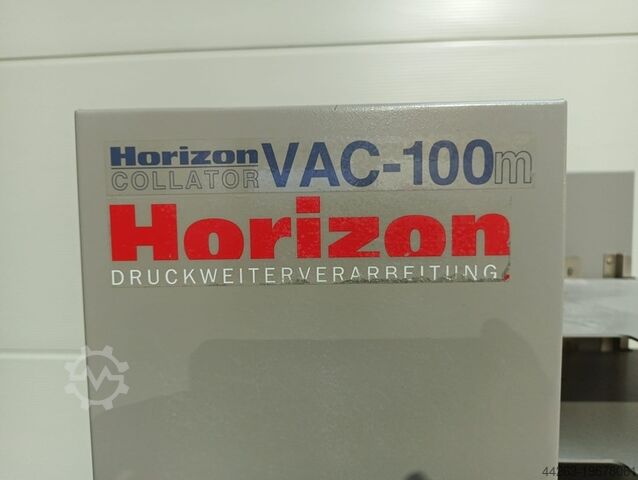

Horizon VAC-100m Air-Suction Collator Tower, used

The VAC-100m is the ideal solution for print shops looking to expand their production capacity without investing in completely new systems. Its easy integration with the VAC-100a tower and high reliability make it a valuable addition to your production line.


Key Features:

Cost-efficiency:
The VAC-100m is a cost-effective expansion solution as it operates without its own display and control unit. This reduces acquisition costs and allows you to expand existing systems efficiently.

Expandable Capacity:
With the ability to connect up to 5 VAC-100m towers to one VAC-100a tower, you can flexibly expand your collating capacity to up to 60 stations. This enables efficient handling of large jobs and a significant increase in your production capacity.

Reliability:
With error prevention features such as misfeed, double-feed, and jam control, the VAC-100m ensures that your production runs smoothly and without interruptions.


Specifications:
- Technology: Touch & Work (via VAC-100a)
- Number of stations: 10 per tower
- Expandability: Up to 6 towers (60 stations)
- Error prevention: Misfeed, double-feed, and jam control
Hfodpfxjw Eu Nqs Aahjn
- Job memory: 9 storage slots for repeat orders
- Programs: Double cycle (non-stop operation), sheet insertion (single and double), booklet making program, block program, selective collating
- Sheet size: Max. 500x350 mm; Min. 148x120 mm
- Paper weight: 40-250 g/m²
- Loading capacity: 55 mm per station
- Performance: Up to 9,500 sets/h
- Power: 230V; 50/60Hz - 1.86 kW
- Dimensions: 842x652x1,961 mm
- Weight: 310 kg


All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.


Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
