V4A製3,586リットルの加熱/冷却可能なリアクター（アンカーアジテーター付き）

HANAG 8762

GENERAL
Equipment: Lifting lugs
Design: Suspended
Remarks: Further technical documentation available; Sight glass on manhole cover is missing; Support ring made of mild steel; Flanges partly made of mild steel
Speed: 6 - 40 rpm
Internal diameter: 1,600 mm
Explosion-proof: Motor is explosion-proof (compliance with applicable ATEX regulations under local conditions must be checked)
Total height: 4,250 mm
Crjdpfxoxqaxre Agksk
Heating/cooling: Available
Power: 3.5 kW
Max. permissible operating temperature: 200 °C
Max. permissible operating overpressure: 16.0 bar
Max. overpressure: 3.2 bar

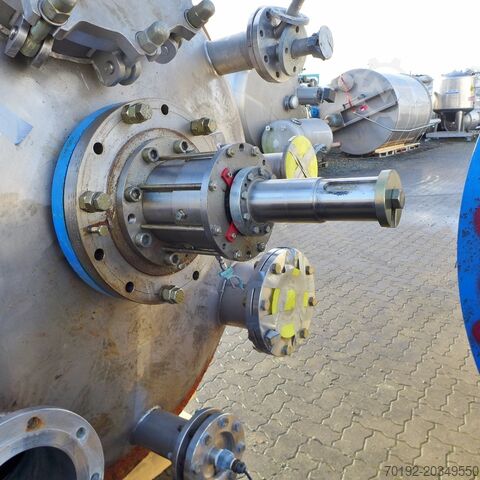

Seal type: Mechanical seal with thermosiphon vessel

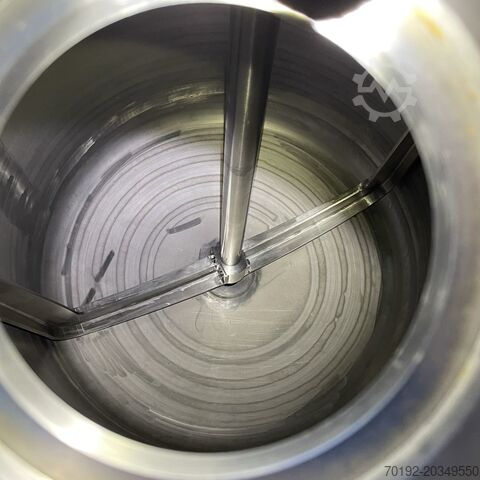

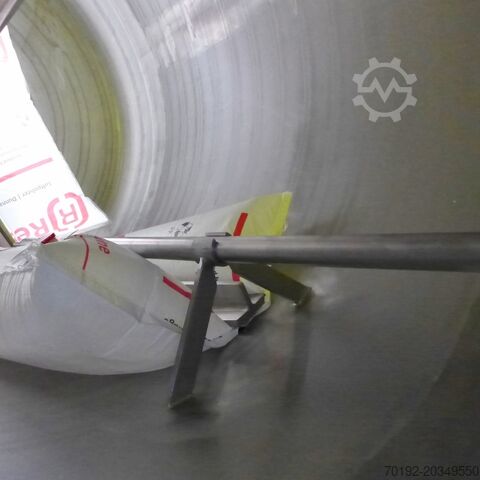

Agitator: Anchor agitator
Base type: Ring base
Location: Bremen
Technical documentation: Drawing, acceptance certificate

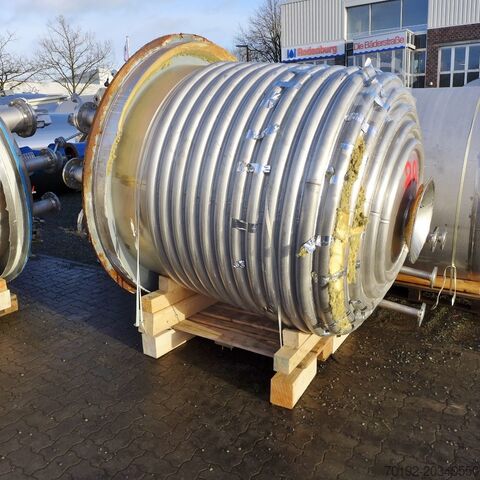

Jacket heating/cooling: Half-pipe coil

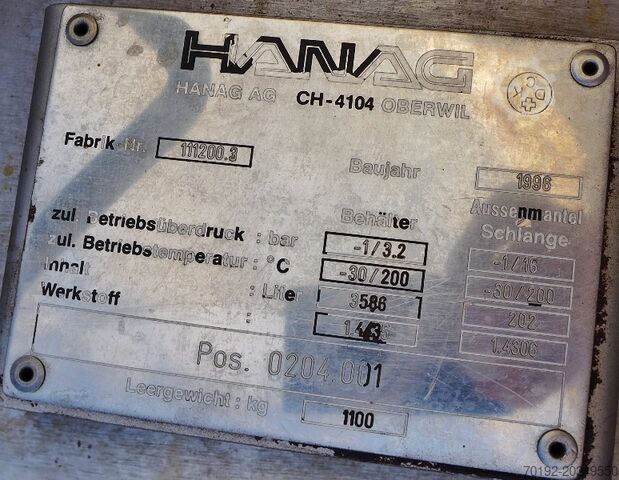

Nameplate:
Vacuum: 1.0 bar
Volume: 3,586 liters
Double-jacket volume: 202.0 liters
Cylinder wall thickness: 6 mm
Product-contact material: Stainless steel V4A 1.4435 (AISI316)
Condition: Used
Cylindrical height: 1,377 mm
Last application: Pharmaceutical chemistry

VESSEL
Max. permissible operating temperature: 200 °C

HEATING/COOLING JACKET
Max. permissible operating vacuum: 1.0 bar

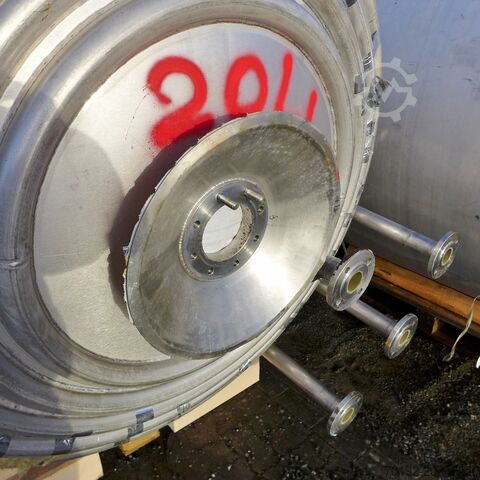

Base heating/cooling: Half-pipe coil

EQUIPMENT
Manhole / Dome: On top head (DN 500)

MATERIAL SPECIFICATION
Jacket system material: AISI 304 (V2A) 1.4306

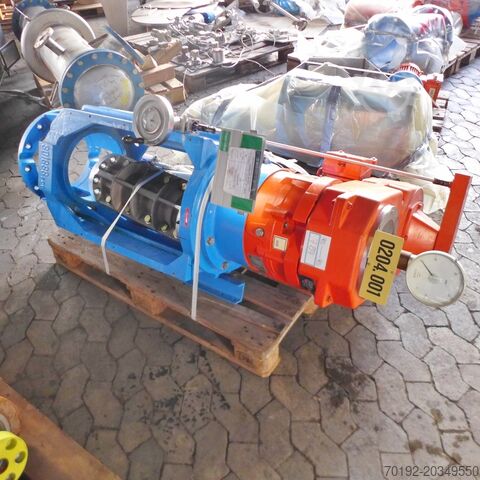

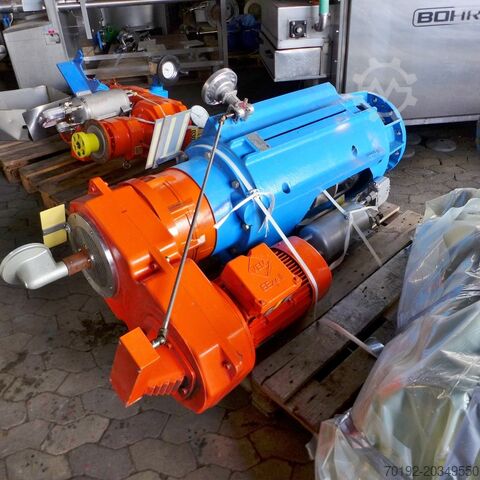

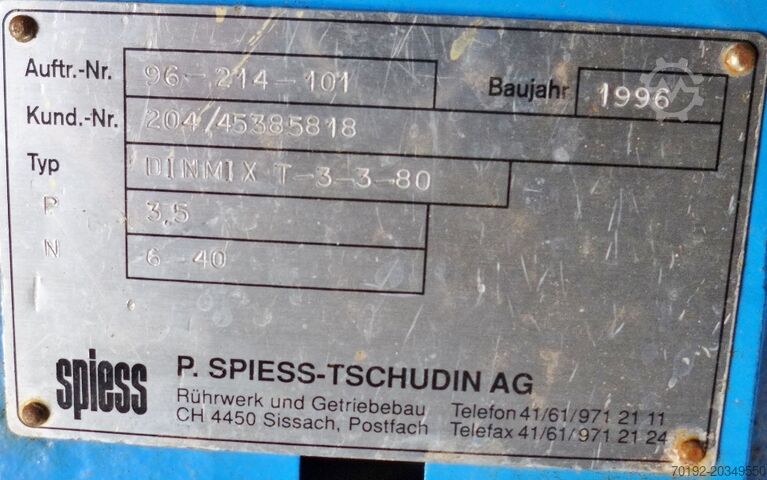

AGITATOR 1
Voltage: 400/690 Volts

TECHNICAL DATA / DIMENSIONS
Bottom wall thickness: 6.5 mm
Agitator arrangement: Centered on top head
Agitator equipment: Drive adjustable via handwheel
Top head wall thickness: 9.1 mm
