電気機械式NC組立モジュール

Kistler 2151B30154002

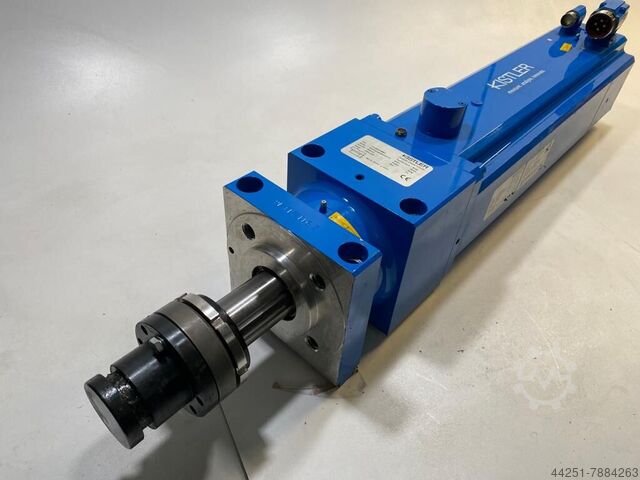

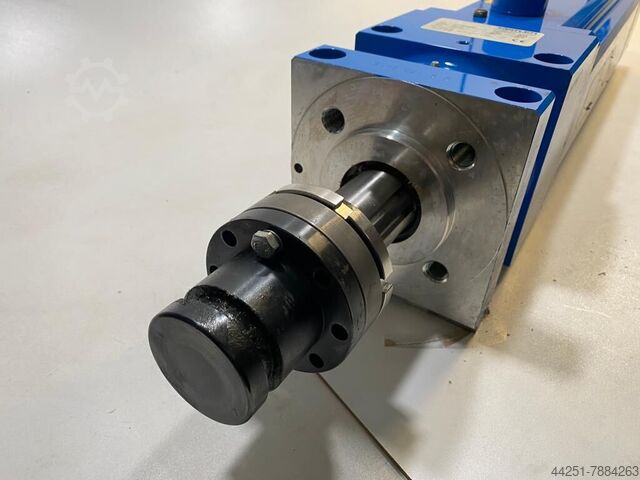

Kistler 2151B30154002 Electromechanical NC joining module
List price 19.000 € net

The NC joining modules NCFH Type 2151B... consist of a robust housing in which a displacement sensor as an absolute encoder and a piezoelectric push-pull force sensor are integrated. The compressive or tensile forces acting on the sensor generate a proportional electrical charge in the piezoelectric measuring element, which is converted into an analog voltage signal by the integrated charge amplifier.

The drive motor is an electronically commutated AC hollow shaft servo motor controlled by a servo amplifier. Constant speed, i.e. constant traverse speed, is ensured. Standard functions such as joining on block, position and force-controlled joining as well as traversing on intermediate positions are supported.

Technical data:
With hollow shaft motor and compact design
Integrated piezoelectric force sensor
including charge amplifier and
Displacement absolute encoder
Measuring direction pressure / tension
Measuring range 1: 30 kN
Measuring range 2: 15 kN
stroke: 400 mm
Displacement repeatability: 0.01 mm
Max. Travel speed: 300 mm/s
With holding brake

Item condition: new, with traces of storage
