熱成形機

Illig UA 250 G Solo/BE

Technical Specifications:
- Maximum material size: 2500 x 1500 mm
- Maximum forming area: 2450 x 1450 mm
- Maximum tool height: 600 mm
- Maximum material thickness: 12 mm

Equipment:
Chsdpfx Aswf Eb Rea Roc

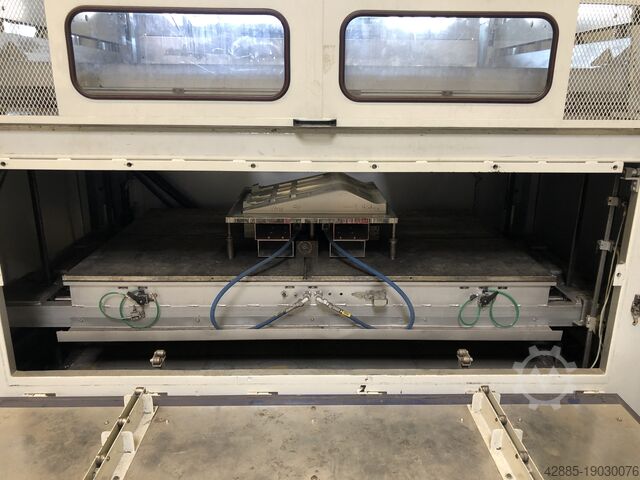

Forming Station

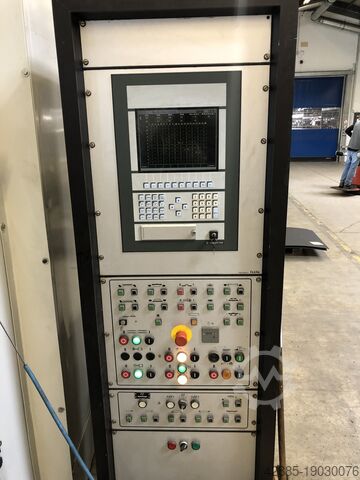

- Schleicher P03 control system
- Automatic setup function
- Top heater: ceramic emitters (500 W) with 4-zone control
- Individual selection of upper heating elements, including lowering
- Bottom heater: ceramic emitters (300 W) with 4-zone control
- Individual selection of lower heating elements, including lowering
- Program and heating settings storage
- Clamping frame with quick-change system
- Parallel upper frame, longitudinal runners for use of fixed format frames
- Lower clamping frame for frame installation from below, central clamping via E-motor
- Pneumatic lower table with rapid/creep speed, adjustable in 15 steps via control panel
- Upper punch with rapid/creep speed, adjustable in 7 steps
- Vacuum pump with cascade control, adjustable in 15 steps via control panel
- Pre-blow automation, percentage adjustable
- Pre-vacuum adjustment, percentage adjustable
- Automatic demolding, percentage adjustable
- Plate sag control via light barrier with support air
- 8-fold cooling fan with spray nozzle cooling
- Large front opening for tool change

Loading
- Automatic sheet loading system
- Centering table for precise positioning of sheets in the feeder
- Motorized sheet lifter
- Motorized sheet positioning adjustment
- Motorized transport lifter
- Motorized adjustment of transport width
