Mobile Crusher: Smart C&D Waste Recycling Solution
Turn Demolition Debris into Profit
Construction and demolition waste accounts for 30-40% of global waste. Our mobile crushing solution processes C&D waste on-site, transforming costly debris into valuable recycled aggregates.
Technical Specifications

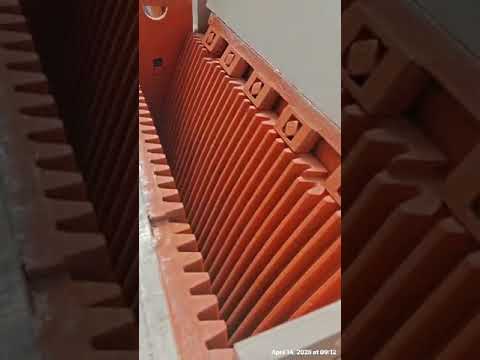

900×1060 Mobile Jaw Crusher
Crusher Unit:
Jaw opening: 900mm × 1060mm
Max feed size: 750mm
Output size: 75-200mm (adjustable)
Capacity: 80-180 TPH
Power: 90-110 kW
Vibrating Screen:
2-deck or 3-deck configuration
Screen area: 3.6-4.8 m²
Motor power: 15 kW
Produces 3-4 aggregate sizes simultaneously
Feeder:
Belt width: 1000mm
Variable speed: 0-25 m/min
Power: 7.5 kW
Hopper capacity: 5-8 m³
Overall:
Dimensions: 12-14m (L) × 2.8-3.2m (W) × 3.8-4.2m (H)
Weight: 38-45 tons
Total power: 120-150 kW
Fuel consumption: 25-35 L/hour (diesel option)
What We Process
✓ Concrete (plain & reinforced)
✓ Asphalt pavement
✓ Bricks and masonry
✓ Tiles and ceramics
✓ Mixed demolition debris
✓ Road construction waste
Complete Recycling Process
1. Feeding
Large hopper (5-8 m³) receives mixed C&D waste up to 750mm
2. Primary Crushing
900×1060 jaw crusher reduces material to 75-200mm with 4-6:1 reduction ratio
3. Magnetic Separation
Automatic removal of steel rebar (>95% recovery rate)
4. Screening
Multi-deck screen produces multiple grades:
0-5mm (sand)
5-10mm
10-20mm
20-40mm
5. Dust Control
Integrated water spray system (8-12 nozzles) achieves >90% dust suppression
Key Features
Mobility:
Track-mounted: Self-propelled, 0.8-1.2 km/h
Wheel-mounted: Highway transportable
Setup time: 30-60 minutes
360° working radius
Automation:
PLC control system
Ljdpfxjq Nf Tvo Ak Dshf
Remote operation (50m range)
Real-time monitoring
Automatic overload protection
Performance:
Concrete: 120-150 TPH
Asphalt: 100-130 TPH
Mixed waste: 80-120 TPH
Screening efficiency: >95%
Output Products
Recycled Aggregates:
0-5mm: Concrete, mortar (15-20% output)
5-10mm: Asphalt mix, drainage (20-25%)
10-20mm: Concrete, road base (25-30%)
20-40mm: Sub-base, backfill (25-30%)
Applications
Building demolition
Highway reconstruction
Bridge dismantling
Airport runway recycling
Disaster debris management
Urban renewal projects
Service Package
Included:
Factory testing
Installation supervision
Operator training (3-5 days)
12-month warranty
Lifetime technical support
Spare parts availability
Get Started
Transform C&D waste from cost to profit. Our 900×1060 mobile crusher delivers proven performance, exceptional ROI, and environmental sustainability.
Contact us for:
Detailed specifications
Custom configurations
Site assessment
Equipment demonstration
Competitive quotation
Make waste work for you. Choose proven mobile crushing technology for sustainable C&D recycling.
