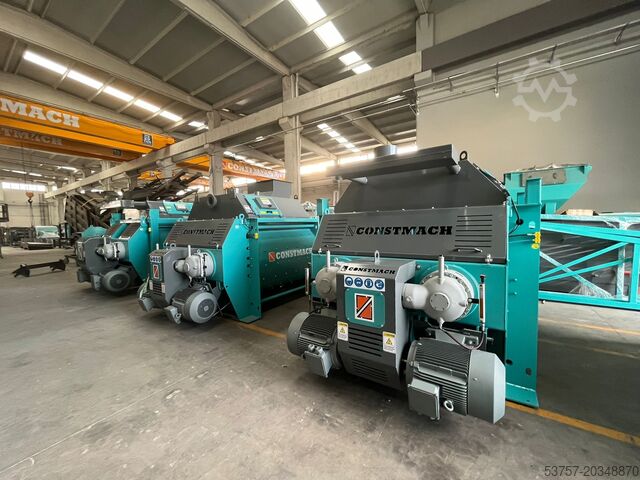

Constmach Concrete Mixer Twin shaft concrete mixer

CONSTMACH twin-shaft concrete mixers are industrial mixing systems that combine high efficiency and durability. Thanks to their robust chassis structure, powerful twin-shaft mixing mechanism, and optimized paddle arrangement, they homogenously blend all aggregate, water, and cement mixtures. This allows for the production of high-strength concrete with a low water/cement ratio while minimizing mixing time. The mixer's spiral mixing system directs aggregates towards the center, ensuring complete uniformity and enabling the production of concrete of consistent quality in every batch. Its twin-shaft design maintains fluidity even in highly viscous mixtures, delivering superior performance in heavy-duty applications such as precast, block, and dam concrete. All models are equipped with modern safety and maintenance features, including an automatic lubrication system, maintenance covers with safety sensors, and a hydraulic discharge cover.

Twin-Shaft Concrete Mixer Technical Specifications

MODEL NO: CTS-1
Loading Volume: 1,500 liters
Fresh Concrete Volume: 1,250 liters
Compacted Concrete Volume: 1,000 liters
Engine Power: 37 kW
Side Body Wear Plates: 15 mm Hardox
Main Body Wear Plates: 15 mm Ni Hard
Mixing Arm Wear Plates: 25 mm Ni-Hard
Automatic Lubrication System: Available
Hydraulic Discharge Cover: Available
Safety Sensor Maintenance Cover: Available

MODEL NO: CTS-2
Loading Capacity: 3,000 liters
Fresh Concrete Volume: 2,500 liters
Compacted Concrete Volume: 2,000 liters
Engine Power: 2 x 37 kW
Side Body Wear Plates: 15 mm Hardox
Main Body Wear Plates: 20 mm Ni Hard
Mixing Arm Wear Plates: 30 mm Ni-Hard
Automatic Lubrication System: Available
Hydraulic Discharge Cover: Available
Safety Sensor Maintenance Cover: Available

MODEL NO: CTS-3
Loading Volume: 4,500 liters
Fresh Concrete Volume: 3,750 liters
Compacted Concrete Volume: 3,000 liters
Hfodpfjxp U Thjx Ab Uod
Engine Power: 2 x 55 kW
Side Body Wear Plates: 20 mm Hardox
Main Body Wear Plates: 20 mm Ni Hard
Mixing Arm Wear Plates: 30 mm Ni-Hard
Automatic Lubrication System: Available
Hydraulic Discharge Cover: Available
Safety Sensor Maintenance Cover: Available

MODEL NO: CTS-4
Loading Volume: 6,000 liters
Fresh Concrete Volume: 5,000 liters
Compacted Concrete Volume: 4,000 liters
Engine Power: 2 x 75 kW
Side Body Wear Plates: 25 mm Ni-Hard
Main Body Wear Plates: 25 mm Ni-Hard
Mixing Arm Wear Plates: 30 mm Ni-Hard
Automatic Lubrication System: Available
Hydraulic Discharge Cover: Available
Safety Sensor Maintenance Cover: Available

MODEL NO: CTS-5
Loading Volume: 7,500 liters
Fresh Concrete Volume: 6,250 liters
Compacted Concrete Volume: 5,000 liters
Engine Power: 2 x 90 kW
Side Body Wear Plates: 25 mm Ni Hard
Main Body Wear Plates: 30 mm Ni Hard
Mixing Arm Wear Plates: 30 mm Ni-Hard
Automatic Lubrication System: Available
Hydraulic Discharge Cover: Available
Safety Sensor Maintenance Cover: Available
